Fabric Raising Machine

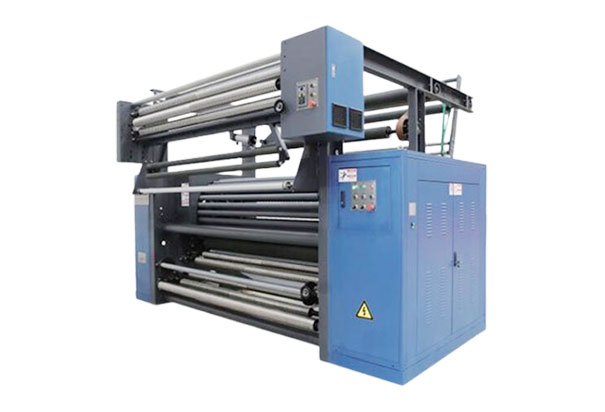

Fabric Raising Machine Gear Type
Technical Parameter
| Raising roller width: | 2000mm 2200mm |
| Working speed : | 14.65-39.74m/mins(50Hz) |
| Rotary speed of cylinder: | 100rpm |
| Diameter of raising roller(bare): | ф60mm ф62mm |
| Number of raising roller: | 24pcs |
| Total power : | 11kW(Main motor), 1.5kW (expanding motor), 5.5kW(suction fan, optional) |
| Overall Dimension (length x width x height) | 3050x3840x3000mm(2000mm) 3050x4040x3000mm(2200mm)) |
Features
- This is the classical machine with gear driving transmission, speeds of fabric feeding, straight fillet and angle fillet are more stable, it is uniform raising tension and easy to operate.
- General electrical system with less failure, easy to maintenance.
